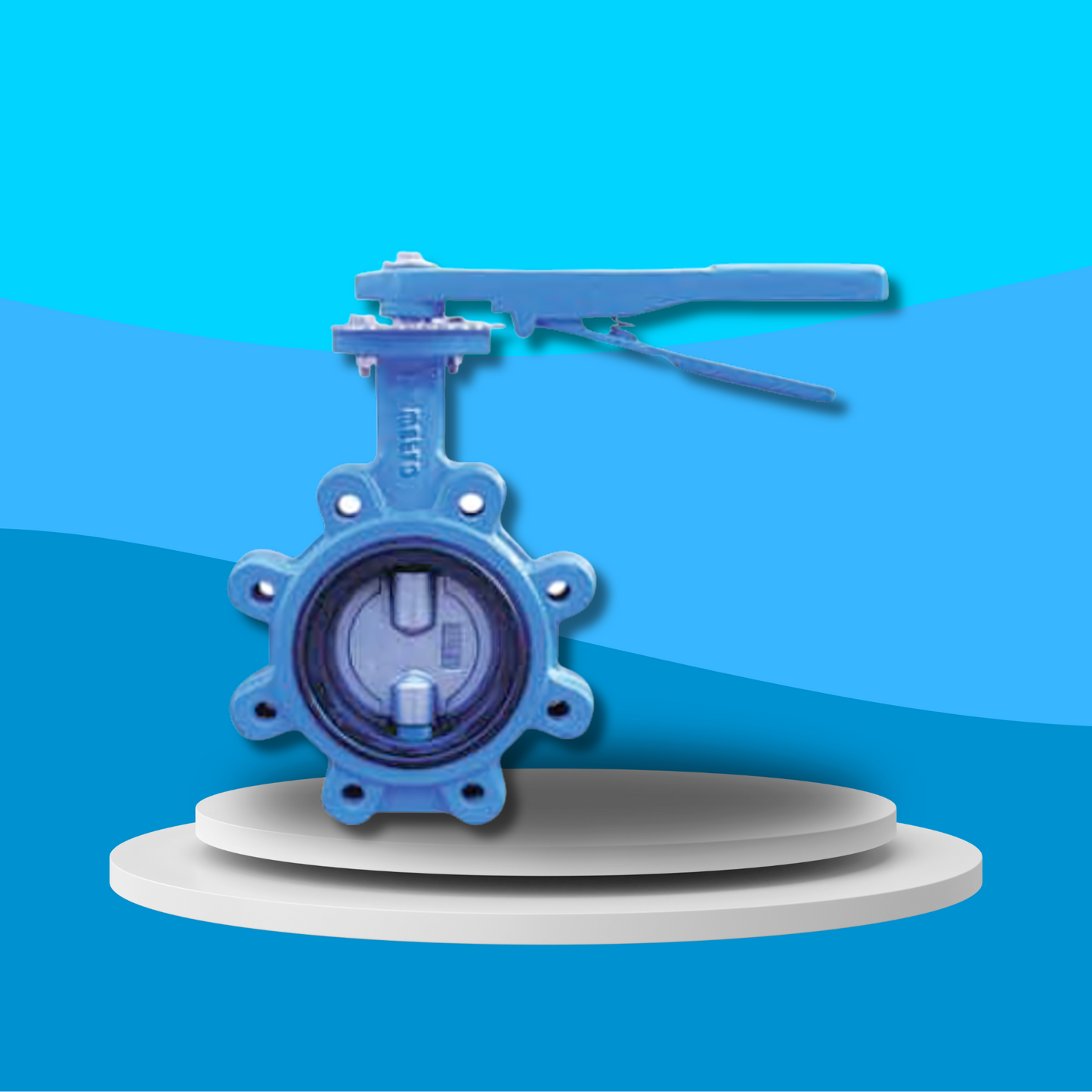

WRAS Approved Lugged & Tapped Butterfly Valve - EPDM Liner - PN25
WRAS Approved Lugged & Tapped Butterfly Valve - EPDM Liner - PN25
Couldn't load pickup availability
WRAS Certified
Introducing the WRAS Approved Lugged & Tapped Butterfly Valve with an EPDM Liner, rated PN25. Designed for exceptional performance and reliability, these valves are ideal for a variety of industrial applications. Each valve is crafted to fit PN25 flanges perfectly and features a direct mount compliant with ISO 5211. With an epoxy-coated ductile iron body and a 304 stainless steel disc, these valves offer robust construction and durability. The lever-operated mechanism ensures efficient flow control, making these valves a reliable choice for your fluid control needs.
Key Features:
- WRAS Approved: Certified to meet high standards for water safety and quality.
- Durable Construction: Epoxy-coated ductile iron body and 304 stainless steel disc for enhanced durability.
- Reliable Sealing: EPDM liner provides excellent sealing and resistance to wear.
- Direct Mount: Compliant with ISO 5211 for easy and secure mounting.
- Versatile Application: Suitable for various industrial applications with a wide temperature range.
- Easy Operation: Lever-operated for straightforward and efficient flow control.
- Precise Fit: Designed to fit PN25 flanges perfectly.
Specifications:
- Material:
- Plug: Zinc Plated Carbon Steel
- Body: EN GJS 450 10 Ductile Iron
- Seat: EPDM
- Disc: 304 Stainless Steel
- Stem Bushing: Reinforced Fiber
- Stem: 431 Stainless Steel
- Seal Ring: NBR
- Seal Bushing: POM
- Retainer Ring: 304 Stainless Steel
- Circlips: Spring Steel
- Pressure Rating: PN25
- Temperature Range: -10°C to 120°C
- Connection Type: Lugged & Tapped
- Liner Material: EPDM
- Mounting Standard: ISO 5211
-
100% Satisfaction Guarantee
-
Dedicated Support
-
Speedy International Shipping
-
We Physically Exist
FAQs
What is a WRAS-approved valve?
A WRAS-approved valve is a valve that has been certified by the Water Regulations Advisory Scheme in the UK. This certification ensures that the valve complies with the strict standards for materials and construction, making it safe for use with potable water systems.
Why is WRAS approval important for valves?
WRAS approval is important because it signifies that the valve will not cause water contamination or pose a health risk when used. This is crucial for maintaining the safety and quality of drinking water.
How can I identify a WRAS-approved valve?
WRAS-approved valves are typically marked with the WRAS logo and a unique approval number. These identifiers can usually be found on the body or packaging of the valve.
What types of valves can be WRAS approved?
Any valve intended for use with potable water can be WRAS approved. Common types include ball valves, check valves, gate valves, and pressure reducing valves.
Where are WRAS-approved valves typically used?
WRAS-approved valves are used in residential, commercial, and industrial water systems where there is direct contact with drinking water. They are essential in systems requiring high standards of hygiene and safety.
Are WRAS-approved valves required by law?
In the UK, water fittings that come into contact with the public water supply must comply with the Water Supply (Water Fittings) Regulations or Scottish Byelaws. These require that components such as valves do not contaminate water and are of an appropriate quality, often necessitating WRAS approval.
What are the benefits of installing WRAS-approved valves?
Installing WRAS-approved valves helps ensure compliance with water safety regulations, prevents water contamination, and enhances the reliability and longevity of water supply systems.
How do I install a WRAS-approved valve?
Installation of a WRAS-approved valve should follow manufacturer guidelines and local plumbing codes. It's recommended to hire a qualified plumber to ensure proper installation and operation.
