Wras Valve

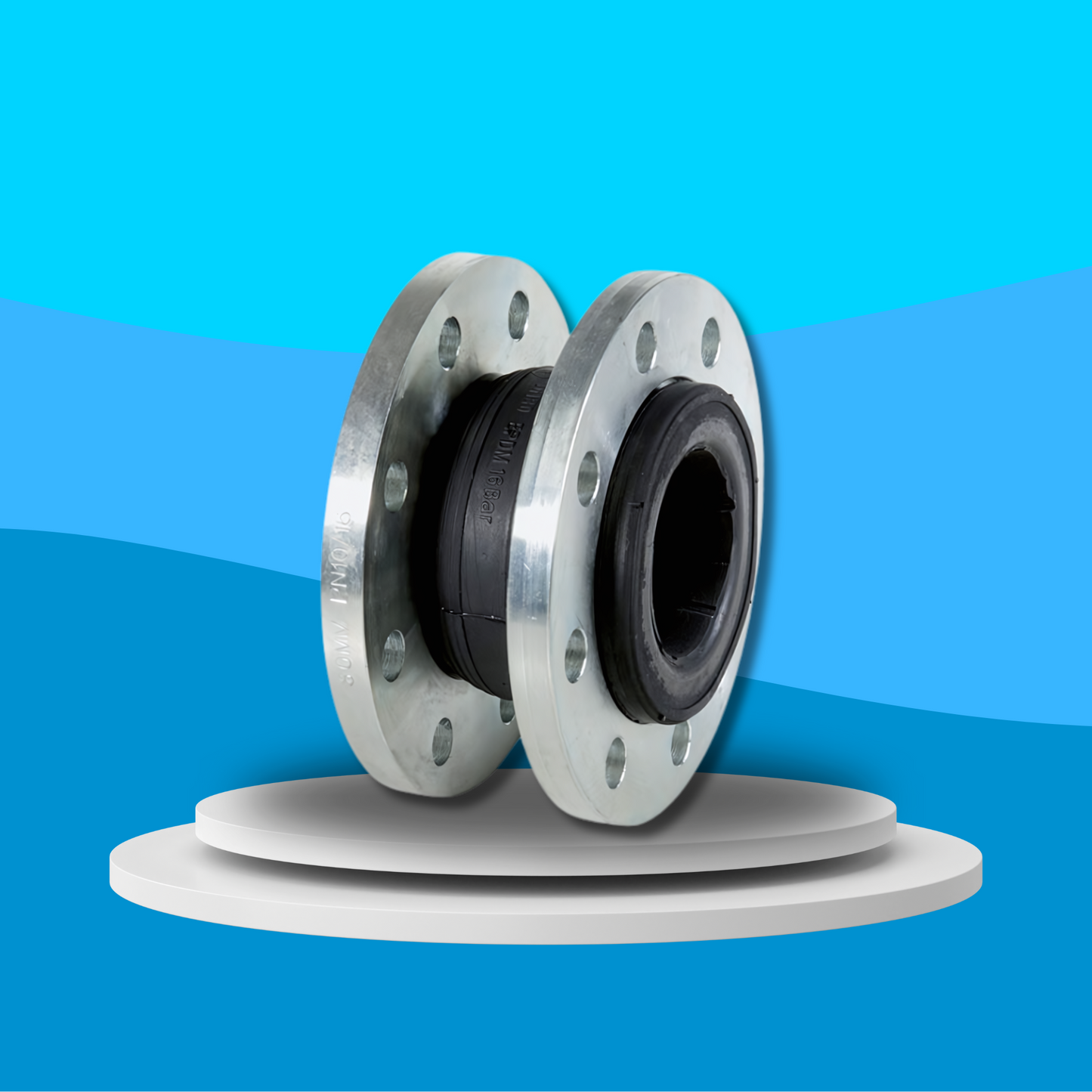

WRAS Approved EPDM Bellow Actuator
WRAS Approved EPDM Bellow Actuator
Couldn't load pickup availability
WRAS Certified
Introducing the WRAS Approved EPDM Bellow Actuator, designed for exceptional flexibility and performance in fluid control systems. These bellows are available in both Standard and Galvanised options, offering versatility for a wide range of industrial applications. Crafted from high-quality EPDM, these bellows are engineered to withstand various temperature ranges while ensuring reliable performance and durability.
Key Features:
- WRAS Approved: Certified to comply with stringent WRAS standards for water safety and quality.
- High-Quality Materials: Made from premium EPDM for excellent resistance to wear and tear.
- Versatile Applications: Suitable for diverse industrial applications.
- Durable Construction: Available in both galvanised and standard versions to suit different operational needs.
- Temperature Resilience: Can operate effectively within a wide temperature range from -10°C to 100°C.
- Pressure Handling: Rated at PN16 for robust performance under pressure conditions.
Specifications for Standard (Flanged):
- Bellow: EPDM
- Flanges: Zinc Plated Carbon Steel
- Pressure: PN16
- Temperature Range: -10°C to 100°C
- Sizes Available: Up to 48", ANSI 150 compatibility
Specifications for Galvanised (Flanged):
- Bellow: EPDM
- Reinforcement: Nylon
- Retaining Ring: Steel
- Flanges: Galvanised Carbon Steel
- Pressure: PN16
- Temperature Range: -10°C to 100°C
- Sizes Available: Up to 24"
Specifications for Galvanised (Screwed):
- Bellow: EPDM
- Reinforcement: Nylon
- Union Screw: Galvanised Iron
- Ring Nut: Galvanised Iron
- Union Flange: Galvanised Iron
- Pressure: PN16
- Temperature Range: -10°C to 100°C
- Sizes Available: Up to 24"
-
100% Satisfaction Guarantee
-
Dedicated Support
-
Speedy International Shipping
-
We Physically Exist
FAQs
What is a WRAS-approved valve?
A WRAS-approved valve is a valve that has been certified by the Water Regulations Advisory Scheme in the UK. This certification ensures that the valve complies with the strict standards for materials and construction, making it safe for use with potable water systems.
Why is WRAS approval important for valves?
WRAS approval is important because it signifies that the valve will not cause water contamination or pose a health risk when used. This is crucial for maintaining the safety and quality of drinking water.
How can I identify a WRAS-approved valve?
WRAS-approved valves are typically marked with the WRAS logo and a unique approval number. These identifiers can usually be found on the body or packaging of the valve.
What types of valves can be WRAS approved?
Any valve intended for use with potable water can be WRAS approved. Common types include ball valves, check valves, gate valves, and pressure reducing valves.
Where are WRAS-approved valves typically used?
WRAS-approved valves are used in residential, commercial, and industrial water systems where there is direct contact with drinking water. They are essential in systems requiring high standards of hygiene and safety.
Are WRAS-approved valves required by law?
In the UK, water fittings that come into contact with the public water supply must comply with the Water Supply (Water Fittings) Regulations or Scottish Byelaws. These require that components such as valves do not contaminate water and are of an appropriate quality, often necessitating WRAS approval.
What are the benefits of installing WRAS-approved valves?
Installing WRAS-approved valves helps ensure compliance with water safety regulations, prevents water contamination, and enhances the reliability and longevity of water supply systems.
How do I install a WRAS-approved valve?
Installation of a WRAS-approved valve should follow manufacturer guidelines and local plumbing codes. It's recommended to hire a qualified plumber to ensure proper installation and operation.
